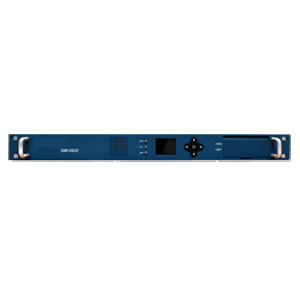

DVB-S/S2 Demodulating |
Density |
DVB-S/S2/S2X: 2xRF input (F-type, 75 ohms) |
Frequency Range |
950~2150MHz; |
Signal Strength |
-65dBm ~ -25dBm; |
LNB Power |
13V, 18V and optional disabled |
Modulation
|
DVB-S: QPSK; DVB-S2: QPSK, 8PSK, 16APSK, 32APSK; DVB-S2X: QPSK,8PSK,8PSK-L, 16APSK, 16APSK-L, 32APSK, 32APSK-L; |
Symbol rate |
1Msps~45Msps (DVB-S) 1 Msym/s to 45Msym/s(DVB-S2) 1 Msym/s to 45Msym/s(DVB-S2X) |
FEC |
DVB-S: QPSK (1/2,2/3,3/4,5/6,7/8) DVB-S2: QPSK (1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10) 8PSK(3/5, 2/3, 3/4, 5/6, 8/9, 9/10) 16APSK(2/3, 3/4, 4/5, 5/6, 8/9, 9/10) 32APSK(3/4, 4/5, 5/6, 8/9, 9/10) DVB-S2X: QPSK(13/14 9/20 11/20) 8PSK(23/36 25/36 13/18) 8PSK-L(5/9 26/45) 16APSK(26/45 3/5 28/45 23/36 25/36 13/18 7/9 77/90) 16APSK-L(5/9 8/15 1/2 3/5 2/3) 32APSK(32/45 11/15 7/9) 32APSK-L(2/3) |
Roll-off coefficient |
DVB-S: 0.35; DVB-S2: 0.35, 0.25, 0.2 DVB-S2X: 0.35, 0.25, 0.2, 0.15, 0.1, 0.05 |
Standard |
DVB-S: ETSI EN 300 421 DVB-S2: ETSI EN 302 307 DVB-S2: ETSI EN 302 307-2 |
22kHz On/Off |
DiSEqC1.0, 1.1, 2.0, 2.1 |
LBN |
13V, 18V or Off |
BISS Descramble |
BISS-1/E/CA |
DVB-T/T2 Demodulating |
Interfaces |
Up to 2 DVB-T-T2(F Type(F) 75ohm) |
Constellation |
DVB-T: QPSK, 16QAM, 64QAM DVB-T2: QPSK, 16QAM, 64QAM, 256QAM |
Frequency Range |
47 ~ 870MHz |
RF Input Level |
-75dBm ~ -5dBm |
Standard |
ETSI EN 300 744 ETSI EN 302 755 |
FEC |
FEC(DVB-T): 1/2, 2/3, 3/4, 5/6, 7/ FEC(DVB-T2): 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8 |
Protection Interval |
DVB-T: 1/4, 1/8, 1/16, 1/32; DVB-T2: 1/4, 1/8, 1/16, 1/32, 1/128, 19/128, 19/256; |
Carrier Mode |
DVB-T: 2k, 8k; DVB-T2: 1k, 2k, 4k, 8k, 16k, 32k; |
Input Bandwidth |
DVB-T: 6MHz, 7 MHz, 8 MHz DVB-T2: 5MHz, 6MHz, 7 MHz, 8 MHz |
T2MI |
T2-MI de-framing to MPEG TS One T2-MI-to-TS conversions, 16 PLPs |
8VSB Demodulating |
Density |
2 * RF input (F-type, 75 ohms); |
Modulation Mode |
8VSB |
Standard |
ISO13818 and ATSC A/53 standards |
Roll-off Factor |
0.115 |
Input Bandwidth |
6MHz |
Frequency Range |
54MHz ~ 864MHz |
Effective Receiving Level |
-78dBm ~ -5dBm |
8VSB Demodulating |
Density |
2 * RF input (F-type, 75 ohms); |
Modulation Mode |
8VSB |
Standard |
ISO13818 and ATSC A/53 standards |
Roll-off Factor |
0.115 |
Input Bandwidth |
6MHz |
Frequency Range |
54MHz ~ 864MHz |
Effective Receiving Level |
-78dBm ~ -5dBm |
ISDB-T Demodulating |
Density |
2 * RF input (F-type, 75 ohms); |
Modulation Mode |
DQPSK, QPSK, 16QAM, 64QAM |
Standard |
ARIB STD-B31; |
FEC |
1/2, 2/3, 3/4, 5/6, 7/8; |
Protection Interval |
1/4, 1/8, 1/16, 1/32 |
Input Bandwidth |
6MHz, 7 MHz, 8 MHz |
Frequency range |
42MHz~870MHz |
Effective receiving level |
-78dBm ~ -5dBm |
Video Decoding |
Density |
HDMI*1 (Embedded Audio) CVBS * 1 (BNC, 75 ohms) |
Decoding Format |
H.264 BP/MP/HP@level5.1； H.265 Main/Main10 profile@Level5.1 High tier； MPEG2 SP@ML，MP@HL |
Decoding Resolution |
4K@25,30,50,60fps； 1080P@25,30,50,60fps； 1080I@50,60fps； 720P@50,60fps； 480I@60fps； 576I@50fps； PAL, PAL-M/N, NTSC,SECAM |
Image Processing |
Support Resolution transcoding Support aspect ratio transcoding Support letter-box, center-cut |
Chroma format |
4:2:0 |
Audio Decoding |
Interface |
1 * DB9 |
Density |
1 channel |
Decoding Format |
DRA DD/DDP Suma-DA, Suma-HDA MPEG L1/L2 |
Volume Adjustment |
-30dB ~ 0dB |
Input / Output |
GE |
2 x RJ-45(1+1 Backup) SMPT/MPTS Support Multi-cast/Uni-cast Mux & Re-mux PID remapping , filtering PCR Adjustment TS By-pass PSI/SI analyzing PSI/SI table interval adjustment |
ASI |
2 ASI Inputs/outputs Maximum bitrate: 213Mbps 188/204 packet Standard: EN50083-9 |
Serial Port |
1 x DB-9 |
| Descrambling |
CI |
2 CAM Card Slots (32 programs, depends on CAM card) |
Biss1/E/CA |
Up to 256 PID UP to 64 Keys |
DCAS |
Supported |
Additional Functions |
EMR function cards. |
Check EMR* Datasheet. C211 decoding card is available for SDI output interface. |
Control |
Interfaces |
1 x RJ-45 |
Front Panel |
LCD and keys |
Ethernet |
Web, SNMP |
Upgrade |
Via Ethernet port |
Physical |
Dimensions |
44.4mm(H) x 482.6mm(W) x 300mm(D) |
Approx. Weight |
≤6Kg |
Power |
Power Supply |
Dual |
Input Voltage Range |
100~240V 50/60Hz 1-0.5A |
Power Consumption |
≤40W (Without EMR function card) |
