CTN7000-P-C from Singapore manufacturer

The IP-MPLS Router product is positioned at the edge of metropolitan networks, targeting multi-service access box-type equipment. It is a small-sized, low-power rack-mounted device primarily used in base station bearer, government and enterprise dedicated lines, corporate headquarters aggregation, and access scenarios.

It is responsible for the access of services into the network and transmits these services to the metropolitan aggregation network. As a mobile service bearer device, it flexibly adapts to various indoor and outdoor environments, featuring plug-and-play functionality, which greatly reduces the operational costs of operators while improving network deployment efficiency.

The design follows standard protocols, supports comprehensive packet technologies, including carrier-grade Ethernet technology, routing technology, and MPLS technology optimized for operators.

Card Slot Type Equipment

Plug and play, efficient deployment

No manual intervention or data pre-planning required, one-time installation upon entry, with indicator light flashing, supports power-on and walk-away.
Complete remote centralized testing and commissioning within 5 minutes, improve deployment efficiency, and comprehensively reduce deployment costs.
Its built-in business acceptance tool enables remote online business SLA acceptance, eliminating the inefficient process of operators bringing instruments to the site for acceptance.

Flexible and convenient operation and maintenance features

Supports connectivity detection ping and tracert at the level of general public networks, DCN, VC, LSP.
Supports multiple OAM protocols such as Y.1731, RFC2544, and mpls-tp oam.
Precise detection of network SLA and other indicators and real-time performance collection.

Comprehensive clock scheme

Supports 1588v2 OC, TC, BC full modes.
Support synchronous Ethernet clock.
Perfectly solve the high-precision clock synchronization issue and indoor clock coverage issue of the group bearer network.
Satisfy the clock requirements of LTE, save additional synchronization investment.

Powerful telecom-grade service protection capability

Provide a rich set of protection schemes, including LAG/LACP, primary-backup Trunk, G.8031, G.8032, VRRP, and TE FRR protection.
Achieve multiple protections at the business/channel/node/link/network level.
Through hardwareization, hierarchical OAM, BFD for everything to achieve rapid fault detection.
Provide 50ms telecom-grade protection switching and business system imperceptibility.

Layered QoS functionality

Supports simple, complex flow classification and multi-level HQoS.
Provide differentiated user and business services, as well as refined traffic adjustment and shaping.
More accurate fault location.
Support the function of deathbed wills, when the device experiences abnormal power failure, it will issue an alarm, allowing customers to accurately locate the anomaly.

Rich system management and maintenance

Supports watchdog, system operation indicator light, system debugging, and version inquiry.
Supports local and remote software upgrades/data loading, upgrade rollback, backup, save, and clear operations.
Supports hierarchical user permission management, operation log management, command line online help and command comments, supports multiple user authentication modes.
Supports the query of layer 2/layer 3 interface information, supports alarm grading, alarm classification, and alarm filtering.

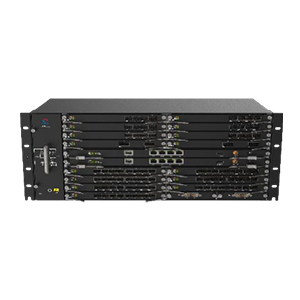

Product Model	CTN7000-P-C	CTN7000-P-E
Equipment Dimensions (W)mm x(D)mm x(H)mm	443246132	443246222
Equipment Height	3U	5U
Equipment Weight	5.25kg(empty)/12.25kg(full)	6.75kg(empty)/14.5kg(full)
Power Consumption	250 W (Maximum) / 140 W (Typical power consumption)	500 W(Maximum)/230W(Typical power consumption)
Form	Card slot	Card slot
Exchange Capacity	800Gbps(Two-way)	880Gbps(Two-way)
Packet Forwarding Rate	595Mpps	655Mpps
Board Type	MCSX board (mandatory) - Main control crossbar board, providing MON/RS232/CLK/TOD interfaces	MCSX board (mandatory) - Implements core switching and control functions, and provides MON/RS232/CLK/TOD interfaces
	EMXF4G board (optional) - 4*10GE optical interface	EMCF2 board (optional) - 1100GE optical interface / 250GE optical interface
	EMGF8 board (optional) - 8*GE/FE interfaces	EMVF4 board (optional)-4*25GE/10GE optical interfaces
	/	EMXF4 board (optional) - 4*10GE/GE optical interfaces
	/	EMGF8 board (optional)-8*GE/FE interfaces
Business Slot	7 slots	15 slots
Equipment Usage	Aggregate access	Ultra-wide access
DC Power	-48V dual power supply
DC Power	-36～-72 V
DC Power	220V dual power supply
	100~240 V
	50/60 Hz
Work Temperature	-5～55℃
Work Humidity	10%～90%RH,no condensation
Lightning Protection Level For Power Supply	Power supply differential mode 4kV, common mode 2kV
Radiated Emission Interference	Satisfy GB9254-2008 Class A
Storage Temperature	-40℃~+70℃
