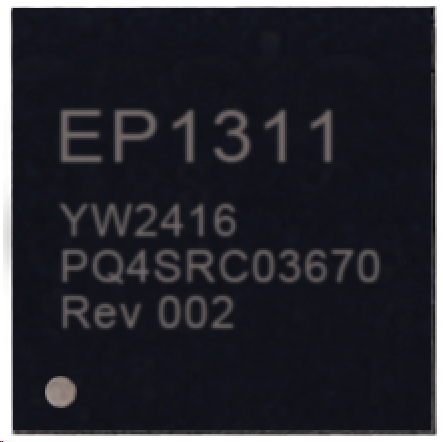

EP1311

·Single GE PHY
·RGMII MAC
·QFN40 footprint
Availability:
Inquire

EP1311

provides all physical layer functions to transmit and receive Ethernet packets over CAT5E UTP cable. Uses DSP technology and an Analog Front End (AFE) to enable high-speed data transmission and reception over UTP cable.

Functions such as Crossover Detection, Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented

Providing robust transmission and reception capabilities at all speeds.

Offering integrated built-in self-test and loopback capabilities for ease of use and diagnosis.


·1000BASE-T IEEE 802.3ab Compliant

·100BASE-TX IEEE 802.3u Compliant

·10BASE-Te IEEE 802.3 Compliant

·Supports RGMII

·Supports IEEE 802.3az-2010 (Energy Efficient Ethernet)

·Supports Synchronous Ethernet (Sync-E)

·Supports Wake-on-LAN (WOL) over UTP

·Supports Automatic Crossover Detection

·Supports Automatic polarity correction

·Supports 120m for CAT5E cable in 1000BASE-T

·Selectable 3.3V/2.5V/1.8V signaling for RGMII.

·Provides 3 network status LEDs

·Built-in Switching Regulator or LDO

·Supports 10k bytes jumbo frame for 1000BASE-T,100BASE-TX and   10BASE-Te

·40-pin QFN Footprint



·Ethernet Switch

·Routers,DSLAMs,PON Equipment

·Embedded system with an Ethernet MAC that needs a UTP physical

·Test and Measurement Systems

·Industrial/Factory Automation Equipment

·DTV (Digital TV)

·MAU (Media Access Unit)
