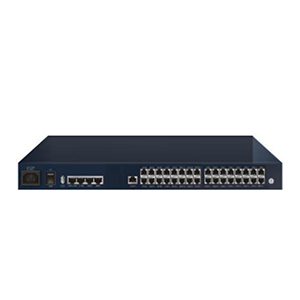

IAD1800E-S32 from Singapore manufacturer

IAD (Integrated Access Device), the device supports SIP (Session Initiation Protocol) and H.248 (Media Gateway Control Protocol), connects analog telephones, fax machines, and POS terminals to the operator's IMS core network, and works with the operator's NGN/IMS platform to implement various telephony services.

The IAD1800E product is a high-performance, multi-purpose voice access gateway that supports a variety of functions including data, voice, and security. It meets the needs of operators or virtual operators, and enterprises to provide broadband, voice, and fax services to users via IP access methods. This product can also be used in conjunction with IPPBX equipment to build cross-regional IP voice exchange networks for governments, enterprises, schools, and other branches, offering efficient voice communication.

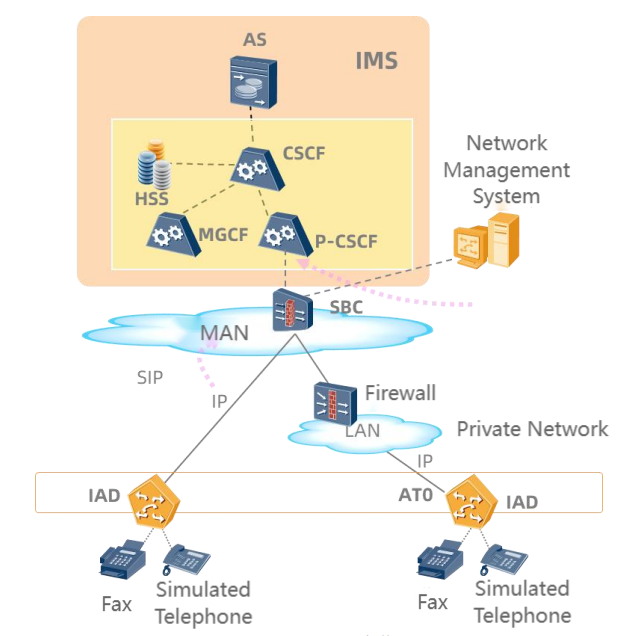

Connect the analog telephone, fax machine, and POS machine to the IMS core network, and cooperate with the IMS/NGN platform to realize telephone serices.
Supports standard SIP protocol, H.248 protocol oice access and its call control process.
Supports G.711A, G.711U, G.729, G.723.1, G.722 audio codec.
Supports local WEB management and remote network management maintenance modes.
Supports ACL access control, ARP attack preention, DDoS protection, anti-tampering, and other features.
Supports self-switching function, when the external line is interrupted, extensions within the same deice can communicate normally.
Compatible with Huawei/ZTE IMS, OS, Free SWITCH, and Asterisk/Elastix business platforms.

Hardware Specifications

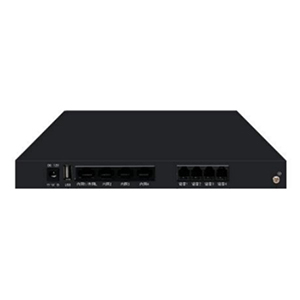

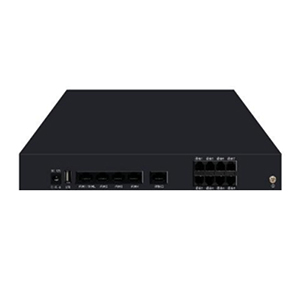

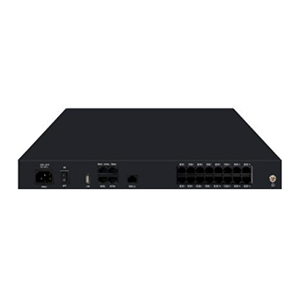

Product Model	IAD1800E-S4	IAD1800E-S8	IAD1800E-S16	IAD1800E-S32
Case (LengthWidthHeight)	21214926mm	22214943.5mm	32020043.5mm	44022443.5mm
FXS	4个	8个	16个	32个
Power Consumption	15W	20W	35W	45W
Web Port	4GE
USB Interface	1个full/high speed USB interface
Shell	Metal material
Reliability	7×24 hours, success rate greater than 99.999%; MTBF greater than 50,000 hours
Temperature And Humidity	-5°C to 55°C, less than 95% (non-condensing)
Working Air Pressure	86KPa~106KPa
Software Specifications
Voice Protocol	IMS/NGN SIP、H.248 SIPv2.0、RFC3261、SDP、RTP(RFC2833) RFC3262、3263、3264、3265、3515、2976、3311 RTP/RTCP、RFC2198、1889、RFC4028SessionTimer RFC3266IPv6inSDP、RFC2806TELURI、RFC3581、NAT、rport
Voice Processing	Encoding and decoding：G.711A、G.711U、G.729、G.723.1、G.722 Echo Cancellation: G.168, Tail Length 64 milliseconds Comfortable background sound, silence compression (VAD) Support signaling and media DOTSCP/TOS tagging Number Map Digitmap
Voice Service	Supports basic calling, caller ID, call waiting, call holding, call forwarding, and three-way calling; In conjunction with IPPBX/IMS, the following features can be implemented: Caller ID blocking, unconditional call forwarding, busy call forwarding, no answer call forwarding, detection of malicious calls, outbound call restriction, do not disturb, abbreviated dialing, hot line service, alarm clock, and call return on busy.
Fax	Supports T.30, T.38 fax
Data Functionality	Supports static IP, DHCP Client, PPPoE, WAN sub-interface Supports routing mode, bridging mode DDNS, Static Routing, NAT, Port Mapping, uPnP, Virtual Domain Names, ALG, DNS, NTP, DHCP Services QoS policy, broadband policy
QoS	Supports rate limiting for VLANs, IP address ranges, ports, and protocols; supports 802.1P marking and DOTSCP marking for traffic; supports setting traffic priorities to ensure bandwidth for critical business applications
Network Administrator	Supports local Web page configuration management, supports remote network management protocols such as SNMP, TR069, and SYSLOG
