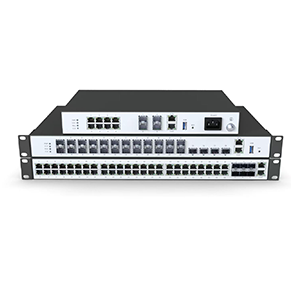

The switch series is designed for high-performance in enterprise networks and metropolitan area networks, suitable for access, aggregation, and hyper-converged applications. These switches feature high switching capacity, low latency, and a rich port configuration, capable of meeting the needs of various complex network environments.
The switch series, with its outstanding performance, flexible scalability, high reliability, rich features, and ease of management, has become the ideal choice for enterprise networks and metropolitan area network access, aggregation, and hyper-converged applications. Whether in ultra-high-speed data transmission scenarios or high-density port access environments, it can provide robust support.
The switch series is designed for high-performance in enterprise networks and metropolitan area networks, suitable for access, aggregation, and hyper-converged applications. These switches feature high switching capacity, low latency, and a rich port configuration, capable of meeting the needs of various complex network environments.
The switch series, with its outstanding performance, flexible scalability, high reliability, rich features, and ease of management, has become the ideal choice for enterprise networks and metropolitan area network access, aggregation, and hyper-converged applications. Whether in ultra-high-speed data transmission scenarios or high-density port access environments, it can provide robust support.
Downlink: GE Uplink: GE or 10G(support 100M/1000M SFP and 10G SFP+)
SNMP: out of band management port
No fan design: except for all optical and POE models
Dual power supplies: for all optical models and POE models
Note: used as ACC in higher redundant requirements, or act as small AGG when requirements are low
Static routing
Stacking (4 units)
Software CFM
Sflow and Netconf
Downlink: GE Uplink: GE or 10G(support 100M/1000M SFP and 10G SFP+)
SNMP: out of band management port
No fan design: except for all optical and POE models
Dual power supplies: for all optical models and POE models
Note: used as ACC in higher redundant requirements, or act as small AGG when requirements are low
Static routing
Stacking (4 units)
Software CFM
Sflow and Netconf
Hardware specifications of non-PoE switches>> | ||||||

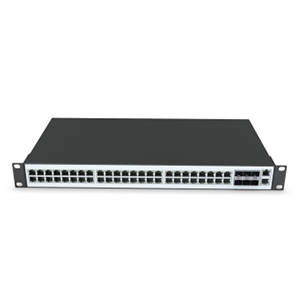

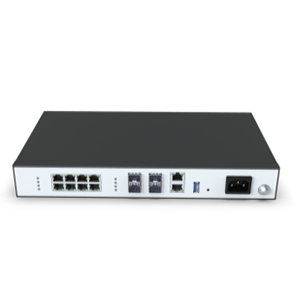

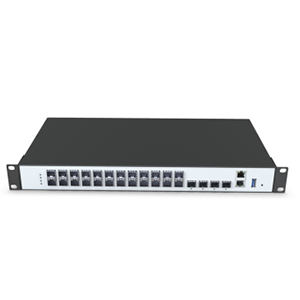

Product | LS1200-8T4X | LS1200-8S4T4X | LS1200-24T4X | LS1200-24S4X | LS1200-8T4S | LS1200-24T4S |
Interfaces | Eight 10/100/1000Mbit/s electrical interfaces Four 10 Gbit/s optical interfaces(supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+ optical module) | Four 10/100/1000 Mbit/s electrical interfaces Eight 1000 Mbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module) Four 10 Gbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+ optical module) | Twenty-four 10/100/1000 Mbit/s electrical interfaces Four 10 Gbit/s optical interfaces(supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+ optical module) | Twenty-four 1000 Mbit/s optical interfaces(supporting the 100/1000 Mbit/s SFP optical module) Four 10 Gbit/s optical interfaces(supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+optical module) | Twenty-four 10/100/1000 Mbit/s electrical interfaces Four 1000 Mbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module) | |
Switching capacity | 96Gbps | 104Gbps | 128Gbps | 128Gbps | 24Gbps | 56Gbps |
Packet forwarding rate | 71Mpps | 77Mpps | 95Mpps | 95Mpps | 18Mpps | 42Mpps |
Dimensions (mm)(Width×Depth×Height) | 260x130x43.6 | 220×230×43.6 | 440x220x43.6 | 440x300x43.6 | 260×130×43.6 | 440×220×43.6 |
Power supply type | Embedded with single power supply:AC/DC | Embedded with single power supply:AC/DC | Embedded with single power supply:AC/DC | Embedded with single/dual power supplies:AC/S,DC/S,AC/D,DC/D,and AC_DC | Embedded with single power supply:AC/DC | |
Input voltage | AC:220 V;rated voltage range:100-240 V;50-60 Hz DC:-48V;rated voltage range:-36 to-72V | AC:220 V;rated voltage range:100-240 V;50-60 Hz DC:-48V;rated voltage range:-36 to-72V | ||||
Maximum power consumption | 15w | 15w | 24w | 43 w | 13w | 22w |
Management interface | 1 Console interface,1SNMP out-of-band interface,and 1 USB interface(except the S2600-8S4T4X) | 1 Console interface,1 SNMP out-of-band interface,and 1 USB interface | ||||
Environment requirements | Operating temperature:-10 to 559C Relative humidity:5%-90%(non-condensing) | Operating temperature:-10 to 55℃ Relative humidity:5%-90%(non-condensing) | ||||
Energy-saving and environmental protection | Support IEEE802.3az Ethernet EEE energy-saving | Support IEEE802.3az Ethernet EEE energy-saving | ||||
Hardware specifications of PoE switches>> | |||
Product | S2600-8T4X-PWR | S2600-24T4X-PWR | S2600-24T4X-PWH |
Interface | Eight 10/100/1000M PoE+electrical interfaces Four 10 Gbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+ optical module) | Twenty-four 10/100/1000 Mbit/s PoE+electrical interfaces Four 10 Gbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+ optical module) | Eight 10/100/1000M PoE++electrical interfaces Sixteen 10/100/1000M PoE+electrical interfaces Four 10 Gbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+optical module) |
Switching capacity | 96Gbps | 128Gbps | 128Gbps |
Packet forwarding rate | 71Mpps | 95Mpps | 95Mpps |
Dimensions(mm)(Width × Depth ×Height) | 300×220×43.6 | 440×300×43.6 | 440×300×43.6 |
Power supply type | Embedded with single power supply: AC/DC | Single/Dual power supply: single AC (AC/S); dual AC (AC/D); dual DC (DC/D);AC + DC (AC_DC) | |
Input voltage | AC 100–240 V，DC 45–57 V Note:45–57 VDC IEEE802.3af，51–57 VDC IEEE802.3at | AC 100–240 V，DC 45–57 V Note:，45–57 VDC IEEE802.3af，51–57 VDC IEEE802.3at，53–57 VDC IEEE802.3bt | |
Maximum power consumption | AC: 124 W，DC: 240 W | AC only: 510 W，Including DC: 720 W | |
PoE | The 8 downlink electrical interfaces support IEEE802.3af/at, with the single interface supporting 30 w power. | The 24 downlink electrical interfaces support IEEE802.3af/at, with the single interface supporting 30 w power. | PoE power supply: electrical interfaces 1–8 support the IEEE802.3bt power supply standards, with the single interface supporting 90 W power. Electrical interfaces 9–24 support the IEEE802.3af/at power supply standards, with the single interface supporting 30 W power. |
Management interface | Console interface, SNMP interface, and USB interface | ||
Environment requirements | Operating temperature: -10 to 55ºC Relative humidity: 5%–90% (non-condensing) | ||
Energy-saving and environmental protection | Support IEEE802.3az Ethernet EEE energy-saving. Support automatically adjusting the fan speed according to temperature. | ||
| Software features >> | |
MAC | Support static,dynamic,and blackhole MAC addresses. Support MAC address flapping management. Support port security MAC and MAC address limit. |
VLAN | Support 4K VLANs. Support VLAN based on MAC/protocol/IP subnet/interface. Support basic QinQ. Support flexible QinQ. Support VLAN mapping(1:1/N:1). Support GVRP. |
Multicast | Support IGMPv1/v2/v3 Snooping and MLD Snooping v1/v2. Support interface-based and user-based immediate leave. Support IGMP MVR. Support IGMP VLAN copy. Support IGMP/MLD Filter. Support IGMP/MLD Proxy. |
QoS/ACL | Support rate limiting based on the ingress direction and egress direction of interfaces.Support HCAR. Each interface supports 8 queues and priority mapping. Support traffic classification and traffic policy. Support SP,WRR,DRR,SP+WRR,and SP+DRR queue scheduling modes. Support congestion control WRED. Support interface/queue shaping. |
Reliability | Support manual aggregation and static LACP. Support ERPS (ITU-T G.8032). Support STP/RSTP/MSTP and spanning treeprotection functions:BPDU Guard,root Guard,loop protection,TC protection/suppression. Support Loop Detection Protection (LBD). Support interface backup and interface isolation. |
L2/L3 OAM | Support Ethernet OAM IEEE802.3ah. Support L2CP. Support end-to-end CFM(IEEE802.1ag)/ITU-T Y.1731. Support interface loopback. Support VRRPv2/VRRPv3. Support BFD for stacking. Support BFD/Linktrace for static route. Support link-state tracking. |
IP routing | IPv4 and IPv6 static route. Support ECMP and policy routing. |
Security | Support AAA user domain-based management,802.1xauthentication,MAC address authentication,and bypass authentication.Support Guest VLAN and Voice VLAN. Support interface-based and VLAN-based storm control. Support the whitelist,port security MAC,and MAC address limit. Support IP attack prevent and ARP attack prevention:IPv4/v6 Source Guard and IPv6 prefix Snooping*;DAl and ND Snooping. Support SSHv2.0,SFTP,and HTTPS. Support CPU protection. |
DHCP | Support DHCPv4/v6 Client/Server. |
IPv6 | Support dual stacks. |
Management and maintenance | Support diversified management methods,such as CLI,SNMPv1/v2c/v3,Web network management,Telnet,and SSHv2.0. Support the nms system. Support LLDP/LLDP MED. Support local and remote port mirroring.Support traffic mirroring. Support system logs and hierarchical alarms.Support power Dying Gasp. Support RMON. Support optical module DDM. Support Virtual Cable Test (VCT)and UDLD. Support clock management,SNTP,NTP,and PTP. Support IPv4/v6 ZTP,which can automatically obtain IP addressesfrom DHCP and optionally download configurations and upgrade software the FTP server. Support USB automatic deployment*. Support dual systems. Support buffer management. Support CPU/Memory/Flash monitoring. Support hardware monitoring (temperature/power/fan(only for products with fans)). |
ISF | Support ISF. |
POE (for PoE switches only) | Support mandatory power supply mode for non-standard PDs. Support PoE power management,including enabling/disabling interface power supply,interface output power configuration,power supply priority configuration,power overload protection,and overtemperature protection. Support timed power supply for POE,timed restarting PDs,monitoring PD connectivity status,and restarting PD upon loss of connection. |
The features or products marked with*are to be released. | |
Hardware specifications of non-PoE switches>> | ||||||
Product | LS1200-8T4X | LS1200-8S4T4X | LS1200-24T4X | LS1200-24S4X | LS1200-8T4S | LS1200-24T4S |
Interfaces | Eight 10/100/1000Mbit/s electrical interfaces Four 10 Gbit/s optical interfaces(supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+ optical module) | Four 10/100/1000 Mbit/s electrical interfaces Eight 1000 Mbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module) Four 10 Gbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+ optical module) | Twenty-four 10/100/1000 Mbit/s electrical interfaces Four 10 Gbit/s optical interfaces(supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+ optical module) | Twenty-four 1000 Mbit/s optical interfaces(supporting the 100/1000 Mbit/s SFP optical module) Four 10 Gbit/s optical interfaces(supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+optical module) | Twenty-four 10/100/1000 Mbit/s electrical interfaces Four 1000 Mbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module) | |
Switching capacity | 96Gbps | 104Gbps | 128Gbps | 128Gbps | 24Gbps | 56Gbps |
Packet forwarding rate | 71Mpps | 77Mpps | 95Mpps | 95Mpps | 18Mpps | 42Mpps |
Dimensions (mm)(Width×Depth×Height) | 260x130x43.6 | 220×230×43.6 | 440x220x43.6 | 440x300x43.6 | 260×130×43.6 | 440×220×43.6 |
Power supply type | Embedded with single power supply:AC/DC | Embedded with single power supply:AC/DC | Embedded with single power supply:AC/DC | Embedded with single/dual power supplies:AC/S,DC/S,AC/D,DC/D,and AC_DC | Embedded with single power supply:AC/DC | |
Input voltage | AC:220 V;rated voltage range:100-240 V;50-60 Hz DC:-48V;rated voltage range:-36 to-72V | AC:220 V;rated voltage range:100-240 V;50-60 Hz DC:-48V;rated voltage range:-36 to-72V | ||||
Maximum power consumption | 15w | 15w | 24w | 43 w | 13w | 22w |
Management interface | 1 Console interface,1SNMP out-of-band interface,and 1 USB interface(except the S2600-8S4T4X) | 1 Console interface,1 SNMP out-of-band interface,and 1 USB interface | ||||
Environment requirements | Operating temperature:-10 to 559C Relative humidity:5%-90%(non-condensing) | Operating temperature:-10 to 55℃ Relative humidity:5%-90%(non-condensing) | ||||
Energy-saving and environmental protection | Support IEEE802.3az Ethernet EEE energy-saving | Support IEEE802.3az Ethernet EEE energy-saving | ||||
Hardware specifications of PoE switches>> | |||
Product | S2600-8T4X-PWR | S2600-24T4X-PWR | S2600-24T4X-PWH |
Interface | Eight 10/100/1000M PoE+electrical interfaces Four 10 Gbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+ optical module) | Twenty-four 10/100/1000 Mbit/s PoE+electrical interfaces Four 10 Gbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+ optical module) | Eight 10/100/1000M PoE++electrical interfaces Sixteen 10/100/1000M PoE+electrical interfaces Four 10 Gbit/s optical interfaces (supporting the 100/1000 Mbit/s SFP optical module and 10 Gbit/s SPF+optical module) |
Switching capacity | 96Gbps | 128Gbps | 128Gbps |
Packet forwarding rate | 71Mpps | 95Mpps | 95Mpps |
Dimensions(mm)(Width × Depth ×Height) | 300×220×43.6 | 440×300×43.6 | 440×300×43.6 |
Power supply type | Embedded with single power supply: AC/DC | Single/Dual power supply: single AC (AC/S); dual AC (AC/D); dual DC (DC/D);AC + DC (AC_DC) | |
Input voltage | AC 100–240 V，DC 45–57 V Note:45–57 VDC IEEE802.3af，51–57 VDC IEEE802.3at | AC 100–240 V，DC 45–57 V Note:，45–57 VDC IEEE802.3af，51–57 VDC IEEE802.3at，53–57 VDC IEEE802.3bt | |
Maximum power consumption | AC: 124 W，DC: 240 W | AC only: 510 W，Including DC: 720 W | |
PoE | The 8 downlink electrical interfaces support IEEE802.3af/at, with the single interface supporting 30 w power. | The 24 downlink electrical interfaces support IEEE802.3af/at, with the single interface supporting 30 w power. | PoE power supply: electrical interfaces 1–8 support the IEEE802.3bt power supply standards, with the single interface supporting 90 W power. Electrical interfaces 9–24 support the IEEE802.3af/at power supply standards, with the single interface supporting 30 W power. |
Management interface | Console interface, SNMP interface, and USB interface | ||
Environment requirements | Operating temperature: -10 to 55ºC Relative humidity: 5%–90% (non-condensing) | ||
Energy-saving and environmental protection | Support IEEE802.3az Ethernet EEE energy-saving. Support automatically adjusting the fan speed according to temperature. | ||
| Software features >> | |
MAC | Support static,dynamic,and blackhole MAC addresses. Support MAC address flapping management. Support port security MAC and MAC address limit. |
VLAN | Support 4K VLANs. Support VLAN based on MAC/protocol/IP subnet/interface. Support basic QinQ. Support flexible QinQ. Support VLAN mapping(1:1/N:1). Support GVRP. |
Multicast | Support IGMPv1/v2/v3 Snooping and MLD Snooping v1/v2. Support interface-based and user-based immediate leave. Support IGMP MVR. Support IGMP VLAN copy. Support IGMP/MLD Filter. Support IGMP/MLD Proxy. |
QoS/ACL | Support rate limiting based on the ingress direction and egress direction of interfaces.Support HCAR. Each interface supports 8 queues and priority mapping. Support traffic classification and traffic policy. Support SP,WRR,DRR,SP+WRR,and SP+DRR queue scheduling modes. Support congestion control WRED. Support interface/queue shaping. |
Reliability | Support manual aggregation and static LACP. Support ERPS (ITU-T G.8032). Support STP/RSTP/MSTP and spanning treeprotection functions:BPDU Guard,root Guard,loop protection,TC protection/suppression. Support Loop Detection Protection (LBD). Support interface backup and interface isolation. |
L2/L3 OAM | Support Ethernet OAM IEEE802.3ah. Support L2CP. Support end-to-end CFM(IEEE802.1ag)/ITU-T Y.1731. Support interface loopback. Support VRRPv2/VRRPv3. Support BFD for stacking. Support BFD/Linktrace for static route. Support link-state tracking. |
IP routing | IPv4 and IPv6 static route. Support ECMP and policy routing. |
Security | Support AAA user domain-based management,802.1xauthentication,MAC address authentication,and bypass authentication.Support Guest VLAN and Voice VLAN. Support interface-based and VLAN-based storm control. Support the whitelist,port security MAC,and MAC address limit. Support IP attack prevent and ARP attack prevention:IPv4/v6 Source Guard and IPv6 prefix Snooping*;DAl and ND Snooping. Support SSHv2.0,SFTP,and HTTPS. Support CPU protection. |
DHCP | Support DHCPv4/v6 Client/Server. |
IPv6 | Support dual stacks. |
Management and maintenance | Support diversified management methods,such as CLI,SNMPv1/v2c/v3,Web network management,Telnet,and SSHv2.0. Support the nms system. Support LLDP/LLDP MED. Support local and remote port mirroring.Support traffic mirroring. Support system logs and hierarchical alarms.Support power Dying Gasp. Support RMON. Support optical module DDM. Support Virtual Cable Test (VCT)and UDLD. Support clock management,SNTP,NTP,and PTP. Support IPv4/v6 ZTP,which can automatically obtain IP addressesfrom DHCP and optionally download configurations and upgrade software the FTP server. Support USB automatic deployment*. Support dual systems. Support buffer management. Support CPU/Memory/Flash monitoring. Support hardware monitoring (temperature/power/fan(only for products with fans)). |
ISF | Support ISF. |
POE (for PoE switches only) | Support mandatory power supply mode for non-standard PDs. Support PoE power management,including enabling/disabling interface power supply,interface output power configuration,power supply priority configuration,power overload protection,and overtemperature protection. Support timed power supply for POE,timed restarting PDs,monitoring PD connectivity status,and restarting PD upon loss of connection. |
The features or products marked with*are to be released. | |
