| Product Specifications |

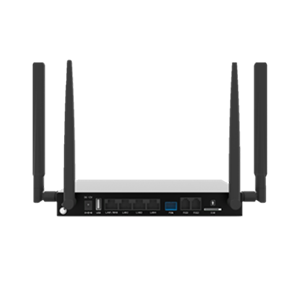

Product Model | SDG350 |
Antenna Interface | 2 dual-band WiFi antennas, 2 4G module antennas, standard SMA interface, can be replaced with suction cup antennas/surface mount antennas/mushroom head antennas according to requirements. |
PON Interface | 1 GPON interface |
SIM/UIM card interface interface | 1 standard self-ejecting SIM card interface |
USB Interface | 1 USB 2.0 interface |
LAN Interface | 4 10/1000M adaptive LAN ports, supporting automatic crossover (Auto MDI/MDIX) |
WAN Interface | 1 10/100M adaptive WAN port, supports automatic crossover (Auto MDI/MDIX) |
FXS | 2 |
LED | In order, they are POWER,SYSTEM,LOS,WLAN，PON,NMS,4G,,WAN,LAN,FEXS |
Button | 1 Reset button |
Power Supply | 12/1.5A Power Adapter |
Maximum power consumption of the product | < 18W |
Enclosure | Color: Black, Iron shell, 212x148x26mm |
Work Environment | Operating temperature: -10°C to 45°C; |
Storage temperature: -40°C to 70°C; |
Working Humidity: 10% to 90%RH, non-condensing |
Storage Humidity: 5% to 90%RH Non-condensing |
| Software Specifications |
Uplink Access | Supports GE Ethernet port, EPON/GPON adaptive upstream mode, supports 4G upstream, supports WAN multi-sub-interface, PPPoE, PPP, DHCP access functions, static IP access functions. |
Basic Functions | Supports bridging, routing, and hybrid work modes, supports basic functions such as DHCPServer, DNS, NAT, routing, EoIP, NTP, VLAN, multicast, etc. |
QoS | Supports rate limiting for VLANs, IP address ranges, ports, and protocols; supports 802.1P and DSCP marking for traffic; supports setting traffic priorities to ensure bandwidth for critical services. |
Voice | Supports IMS SIP, NGN SIP, and common IAD functions. |
4G | CAT4, supports a downstream rate of 150Mbps and an upstream maximum rate of 50Mbps.
LTE TDD: B34/B38/B39/B40/B41; LTE FDD: B1/B3/B5/B8; GSM: 900/1800MHz.
Supports 4G module recognition display, upstream and downstream traffic display, PON/4G dual-link intelligent switching. |
Safety | Supports firewall, access control, content filtering, prevention of internal network ARP attacks, parental controls, and DMZ host functionality. |
SDWAN | Supports L2TP VPN, IPSec VPN, PPTP VPN; supports Netconf, VxLAN |
Network Administrator | Supports local Web page configuration management, supports remote network management protocols such as SNMP, TR069, and SYSLOG. |
