SDWAN Intelligent Management And Control Integrated Platform

SD-WAN devices offer a service that applies SDN technology to wide area network interconnection scenarios. The SD-WAN overlay network technology can mask the complexity of the physical network and integrates various technologies from terminals, pipelines, and the cloud, forming a technological innovation.
Availability:
SDWAN Intelligent Management And Control Integrated Platform

The SDWAN Intelligent Management and Control Platform is a management and operation platform that detects the operational status of devices in real-time and ensures the continuous and stable operation of business. It integrates with the existing network management platform of operators, achieving business parameter interconnection. Through the Netconf protocol, it distributes the networking and cloud access business logic configurations to wired terminal devices, 4/5G terminal devices, and aggregated vCPEs. It supports unified monitoring of devices across the entire domain, completing the configuration of business logic such as user networking and cloud access. With network visualization, it promptly and accurately detects and handles various faults of managed devices, achieving the capability for business on-demand (internet access, branch interconnection, cloud access) and bandwidth on-demand.


SD-WAN devices offer a service that applies SDN technology to wide area network interconnection scenarios. The SD-WAN overlay network technology can mask the complexity of the physical network and integrates various technologies from terminals, pipelines, and the cloud, forming a technological innovation. Its main features include: user on-demand, zero-touch configuration, cloud and application awareness, wide area acceleration, flexible billing, etc.


The SD-WAN product is a highly reliable and flexible intelligent access gateway designed  for enterprise users. The product supports wired, 4G, and 5G access methods, meeting the needs of operators or enterprises to provide broadband, data transmission, video conferencing, and other functions to users through IP access methods. At the same time, it can be centrally managed through a centralized policy management platform, realizing services such as device initialization registration authentication, service orchestration, tenant management, and operation and maintenance management.


Depending on the application scenario, the devices can be divided into uCPE (terminal device), vCPE (central office device), and the centralized policy management platform (controller).

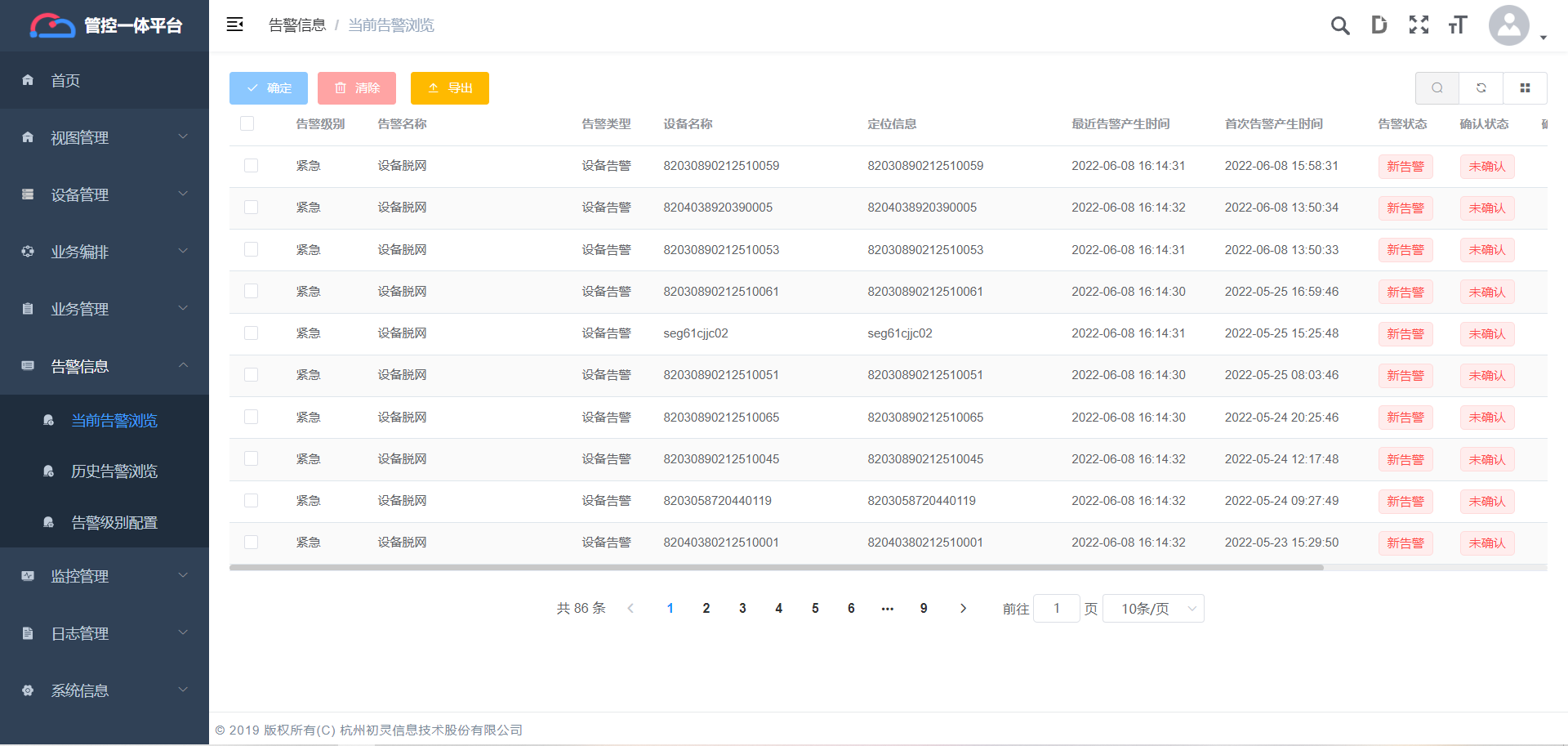

图片 12

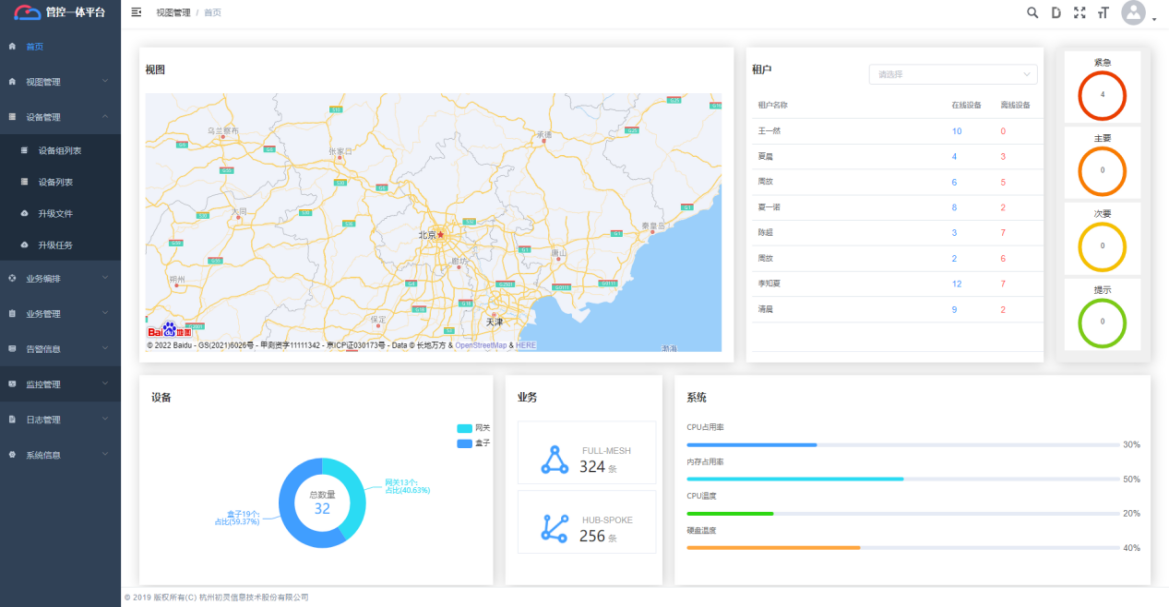

图片 13

  • Achieve business parameter integration with the existing network management platform of the operator, realize the centralized on-demand provision of user value-added services, significantly reduce the deployment cost of customer-side equipment, and enable users to independently order value-added services on demand.

  • Through the Netconf protocol, network configuration and cloud service logic are deployed to terminal devices and aggregated vCPE.

  • It can be achieved by interfacing with third-party applications through API to enable automated deployment and remote provisioning.

  • Achieve business on-demand (internet access, branch interconnection, cloud access) and bandwidth on-demand capabilities.

  • Equipped with timing control capabilities, it is able to perform business scheduling on time, supporting custom time triggers for business and bandwidth.

  • Wide area network dedicated lines, VPN services, and value-added services have achieved automated deployment, supporting self-service configuration and customization for customers, shortening the service activation process, and enabling service activation within hours.

  • Collaborative Operator Orchestration System, realizing fine-grained scheduling of user service traffic, improving SLA guarantees; fully utilizing and integrating customer-side access equipment, completing the management of cross-vendor equipment, service provisioning, fault management, performance statistics, and other functions without altering the existing network topology.


Hardware Specifications

Server/Virtual Machine Minimum Configuration

8 vCPUs, 16GB; 2TB; 2 (Gigabit) network cards; KVM or VMware; Windows Server 2008 R2 or higher operating system

Server/Virtual Machine Recommended Configuration

16vCPU, 64GB; 4TB; 2 (Gigabit) network cards; KVM or VMware; Windows Server 2008 R2 or higher operating system

Software Specifications

Controller Platform Features

Platform Overview, Terminal Device Management, Service Orchestration, Alarm Management, Monitoring Management, Log Management, Automatic Provisioning and On-Demand Features, System Management, Configuration Management

Automatic Activation And On-demand Functionality

Business orchestration is achieved through the platform by associating data configurations related to business and bandwidth, and deploying them to realize the on-demand capability of business and bandwidth. The platform is equipped with scheduled control capabilities, enabling business orchestration to be carried out at specific times, supporting user-defined time triggers for on-demand requirements of business and bandwidth.

System Security And Management

Supports a range of security features including access control, security detection, and attack monitoring, providing comprehensive network monitoring, alerting, and fault handling capabilities; also offers reliable access to system data, attack defense, and protection against data tampering.

Business Platform Integration

By leveraging the northbound open API capabilities of the SD-WAN controller included in the platform, the integration and management system for the PON+SD-WAN solution is improved; the southbound uses the Netconf interface to perform business scheduling and status monitoring on the terminals it manages, meeting the needs of remote service provisioning, while the SD-WAN platform can achieve decoupling of terminal devices from different manufacturers, realizing the unified management of multi-vendor equipment.

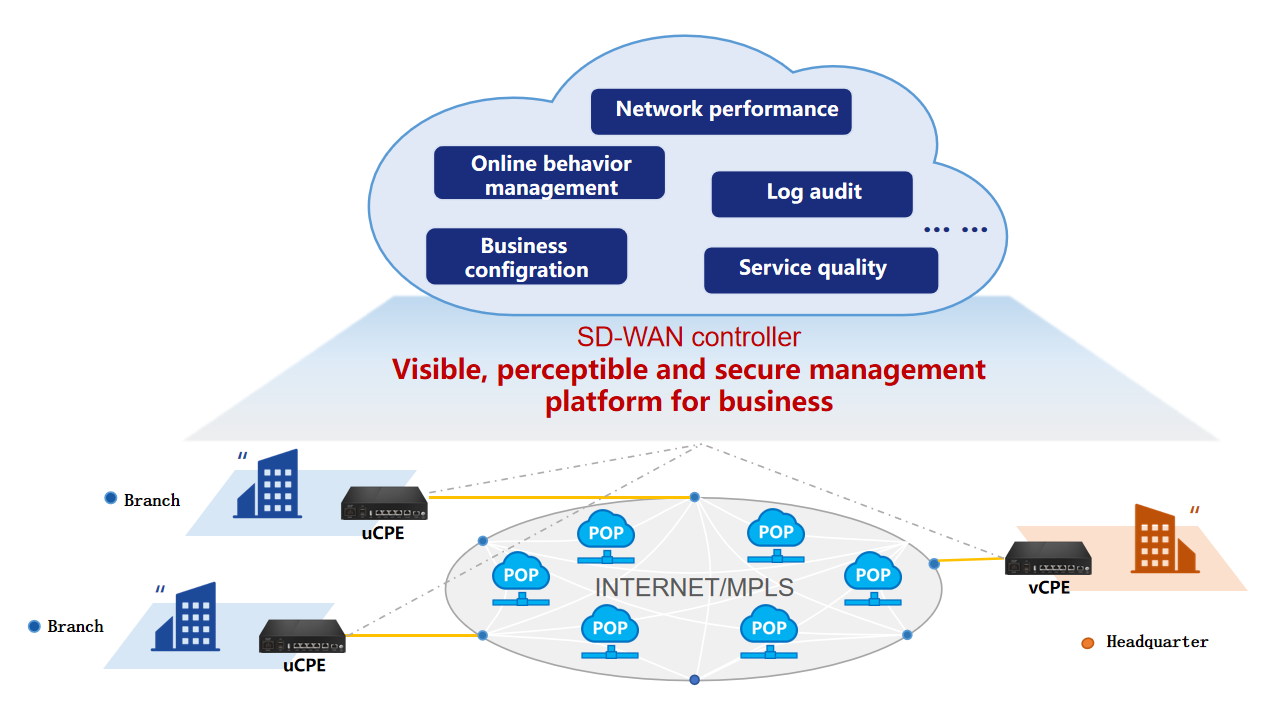

图片 14
