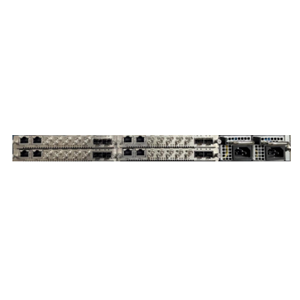

S020 IPG Module |
Input and Output per Module |
SDI Input/Output |
8 x 12G-SDI/3G-SDI input or output (BNC, 75 ohms) 2 of 8 are 12G-SDI |
Synchronization |
2 x BB (BNC, 75 ohms) input/loop out |
IP Ports |
· 2 x 25GbE (SPF28), compatible with 10GbE |
Encapsulation Parameters |
IP address |
IP, Subnet mask, Gateway for the source |
IP address for the destination
|
Unicast and Multicast |
Selection of the source data port and destination port |
Tx and Rx Manual |
Join Multicast by providing correct messaging using IGMPv2/v3 |
Synchronization Interfaces |
SMPTE ST2059 video sync signal |
IP 10GE/25G Ports |
SDI Support |
SD |
625i/525i |
HD |
720p50/59.94/60/25/29.97/30 1080i50/59.94/60 1080p25/29.97/30 |
3G |
1080p50/59.94/60 |
12G |
2160p25/29.97/30/50/59.94/60 4320p25/29.97/30/50/59.94/60 |
Resolution |
UHD/FHD/HD/SD |
frame synchronization/phase adjustment |
Frame synchronization/phase adjustment |
External synchronization or PTP phase as a reference, support frame synchronization/phase adjustment |
Proxy monitoring |
4K stream proxy monitoring under ST2110 standard |
Standard |
SMPTE2022-7 |
Seamless Switching |
SMPTE2022-6 |
SS/HD/3G packeting |
SMPTE2110 |
SMPTE ST2110-20 SMPTE ST2110-21 SMPTE ST2110-22 SMPTE ST2110-30 SMPTE ST2110-31 SMPTE ST2110-40 |
SMPTE ST2059 |
IEEE1588 PTP synchronizing |
JPEG-XS Encoding or Decoding Mode |
Input |
Available with SDI or 2110 inputs |
Standard |
TR-08 SMPTE ST2110-22 options |
S020 CONV mode(2023Q4) |
Resolution conversion |
8K, 4K, HUD |
Frame conversion |
Up and Down |
HDR conversion |
SDR/HDR-HLG/HDR-PQ |
WCG |
BT.709/BT.2020 |
Image processing |
Saturation adjustment and contrast enhancement |
3D-LUT |
33point-3D color mixing |
Color Space |
4:2:0 / 4:2:2 /4:4:4 /RGB |
10K115E Encoding Module |
Density(Per module) |
1 x 4K program Or 4 x HD programs |
Profiles |
H.265: H.265 Main/Main 10 profile@level5.1 High-tier; H.265: Main/Main10 profile@ level5.1 High-tier, Max 4Kx2K @60fps H.264:BP/MP/HP@level5.0, |
Resolutions |
3840x2160p 50/59.94/60/25/29.97/30/24/23.98fps 1920x1080p 50/59.94/60/25/29.97/30/24/23.98fps 1920x1080i 25/29.97/24/23.98fps*(encoding) 1280x720p 50/59.94/60fps |
Chroma format |
4:2:0, 4:2:2 |
Bit Depth |
8-bit,10-bit |
Bitrate |
4Mbps~200Mbps CBR/VBR |
Output (Signal Lost) |
Color Bar Freeze frame Black frame |
GOP |
1-384 |
Audio |
8 pairs/groups audio per channel MP2, Dolby, Suma-Adv. |
Low-Latency |
160ms(Encoding) |
Protocol |
UDP, SRT |
10K215D Decoding Module |
Density(Per module) |
1 x 4K program Or 4 x HD programs |
Profiles |
H.265: H.265 Main/Main 10 profile@level5.1 High-tier; H.265: Main/Main10 profile@ level5.1 High-tier, Max 4Kx2K @60fps H.264:BP/MP/HP@level5.0, |
Resolutions |
3840x2160P@60/50/30/25； 1920x1080P@60/50/30/25； 1920x1080i@60/50；(H.264 frame*) |
Chroma format |
4:2:0, 4:2:2 |
Bit Depth |
8-bit, 10-bit |
Audio |
8 pairs/groups audio per channel MP2, Dolby, Suma-Adv. |
Protocol |
UDP, SRT |
Control |
Interfaces |
1+1* |
LCD |
LCD, press buttons |
Ethernet/Upgrade |
Web Via Ethernet port |
NMOS IS-04/IS-05/08/09 |
Control and Configuration |
LLDP |
Link Layer Discovery Protocol |
IGMPV3 |
Supports multicast management and SSM |
