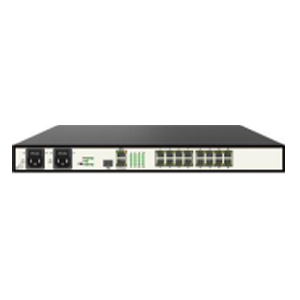

SDG1800M-10U-G16 from Singapore manufacturer

The XG-PON MDU product series is suitable for FTTB (Fiber to The Building) or FTTC (Fiber to The Curb) network applications, providing user terminal access solutions for high-quality data and high-definition video services for enterprises or community users. The series can also be applied in video surveillance scenarios.

The XG-PON MDU series products offer one PON uplink port, supporting two uplink methods: GPON and XGPON, allowing users to flexibly choose according to their needs. Additionally, the device can be equipped with 1 GE uplink electrical port, facilitating flexible networking for users.

The downlink supports the access of 8/16/24 GE electrical interfaces. The XG-PON MDU series products support a maximum downlink transmission rate of 9.95328 Gbit/s and an uplink rate of 2.48832 Gbit/s, providing higher bandwidth to meet various business needs.

Flexible uplink access selection: The product series offers the option of a built-in optical module in the form of bosa and a product form with a SFP+ interface for PON uplink. SFP+ form factor products can achieve GPON or XG-PON selection by replacing the PON module.
High-speed broadband access: Supports a maximum downstream transmission rate of 9.95328 Gbit/s and an upstream transmission rate of 2.48832 Gbit/s, providing higher bandwidth to meet various business needs.
Simple management and operation: Supports maintenance and management through web and OMCI interfaces.
1+1 power backup: 220V dual power backup ensures business reliability.
Energy conservation and environmental protection: ultra-low power consumption, energy saving and emission reduction; adopting a fanless zero-noise design to minimize the impact of equipment operation noise on residential areas.

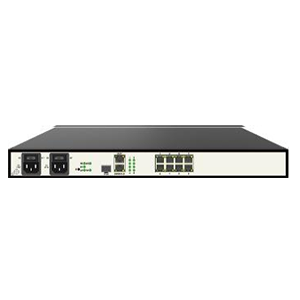

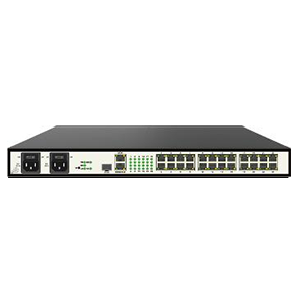

Product Model	SDG1800M-10U-G8	SDG1800M-10U-G16	SDG1800M-10U-G24
Uplink Interface	Supports GPON\XGPON Bosa\SFP+ optional	Supports GPON\XGPON Bosa\SFP+ optional	Supports GPON\XGPON Bosa\SFP+ optional
Downlink Interface	8GE electrical interface	16GE electrical interface	24GE electrical interface
Other Interfaces	Console (RS232), MON port (RJ45) reset button	Console (RS232), MON port (RJ45) reset button	Console (RS232), MON port (RJ45) reset button
Power Supply	1+1 Power Backup 100~240VAC, 50/60 Hz	1+1 Power Backup 100~240VAC, 50/60 Hz	1+1 Power Backup 100~240VAC, 50/60 Hz
Power Consumption	<20W	<30w	<30w
Case Enclosure	Metal	Metal	Metal
Size	440228.544mm	440228.544mm	440228.544mm
Lightning Protection	Lightning protection: Common mode: ±4KV Waveform: 1.2/50	Lightning protection: Common mode: ±4KV Waveform: 1.2/50	Lightning protection: Common mode: ±4KV Waveform: 1.2/50
ESD Protection	Air discharge: 1KV; Contact discharge: 1KV	Air discharge: 1KV; Contact discharge: 1KV	Air discharge: 1KV; Contact discharge: 1KV
Work Environment	25℃~65℃ Humidity: 0～95%	25℃~65℃ Humidity: 0～95%	25℃~65℃ Humidity: 0～95%
Dustproof	Diameter greater than 5m dust concentration ≤3×10^4 particles/m^3 environment normal operation	Diameter greater than 5m dust concentration ≤3×10^4 particles/m^3 environment normal operation	Diameter greater than 5m dust concentration ≤3×10^4 particles/m^3 environment normal operation
Software Specifications
Multicast	Supports ICMP, MLD
Second-level Function	Supports SVLAN+MAC forwarding, SVLAN+CVLAN forwarding, protocol packet transparent transmission, Flow Bundle, VLAN management, and MAC address management.
Safety	Supports DHCP Option 82, IEEE 802.1x, anti-MAC address spoofing, anti-IP address spoofing
QoS	Supports traffic management, traffic policies, priority processing, congestion management, ACL
Management And Maintenance	Supports Web, OMCI
