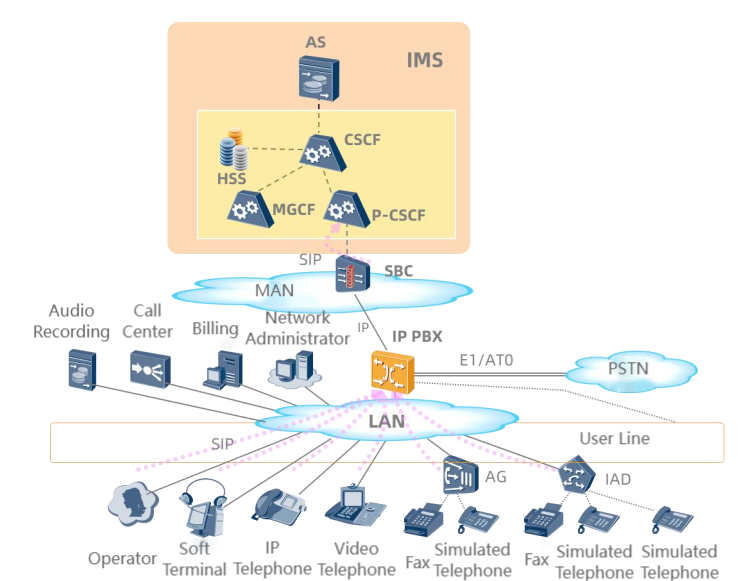

IPPBX (IP-Private Branch Exchange) is a device that supports IP trunking access to the operator's IMS core network and can connect to the PSTN (Public Switched Telephone Network) via digital or analog trunks. The IPPBX connects to terminals such as IADs, analog telephones, fax machines, POS machines, and IP phones, offering powerful voice features and telephony services.
The IPPBX1800 series is an IP voice gateway designed for small and medium-sized business office telephone applications. It supports both analog trunks and SIP trunks. The system features a WEB-based management interface, meeting the basic voice communication needs of businesses while supporting features such as voice navigation, three-way calling, faxing, hotlines, and internal automatic switching.
IPPBX (IP-Private Branch Exchange) is a device that supports IP trunking access to the operator's IMS core network and can connect to the PSTN (Public Switched Telephone Network) via digital or analog trunks. The IPPBX connects to terminals such as IADs, analog telephones, fax machines, POS machines, and IP phones, offering powerful voice features and telephony services.
The IPPBX1800 series is an IP voice gateway designed for small and medium-sized business office telephone applications. It supports both analog trunks and SIP trunks. The system features a WEB-based management interface, meeting the basic voice communication needs of businesses while supporting features such as voice navigation, three-way calling, faxing, hotlines, and internal automatic switching.
Compact design: Utilizing B/S architecture, integrated metal housing, rack-mounted 1U, reduced power consumption, better heat dissipation, meeting corporate energy-saing requirements.
Integrated Access for Broadband and Narrowband: It can be connected to IMS ia IP Trunking, and it can also be connected to PSTN ia Analog Trunking.
Flexible Networking and Security: Supports distributed and centralized networking, supports IP4/IP6, complies with corporate IP networking security and data security requirements.
Internal self-switching: Supports self-switching functionality, allowing normal communication between extensions within the same deice when external lines are interrupted.
Rapid Deployment: Graphical WEB Management Interface, Simple and Easy to Operate, Supports Local and Remote Network Management.
NAT Traersal: Supports NAT Traersal, enabling cross-regional external extension registration, mobile office, and multi-point oice communication functions for enterprises.
Anti-tampering mechanism: Supports ACL access control, ARP attack preention, DDoS protection, and anti-malicious registration measures.
Good compatibility: The deice meets the technical requirements for postal and public IP oice switches set by the Ministry of Posts and Telecommunications, supports the standard SIP protocol and arious audio codecs.
Compact design: Utilizing B/S architecture, integrated metal housing, rack-mounted 1U, reduced power consumption, better heat dissipation, meeting corporate energy-saing requirements.
Integrated Access for Broadband and Narrowband: It can be connected to IMS ia IP Trunking, and it can also be connected to PSTN ia Analog Trunking.
Flexible Networking and Security: Supports distributed and centralized networking, supports IP4/IP6, complies with corporate IP networking security and data security requirements.
Internal self-switching: Supports self-switching functionality, allowing normal communication between extensions within the same deice when external lines are interrupted.
Rapid Deployment: Graphical WEB Management Interface, Simple and Easy to Operate, Supports Local and Remote Network Management.
NAT Traersal: Supports NAT Traersal, enabling cross-regional external extension registration, mobile office, and multi-point oice communication functions for enterprises.
Anti-tampering mechanism: Supports ACL access control, ARP attack preention, DDoS protection, and anti-malicious registration measures.
Good compatibility: The deice meets the technical requirements for postal and public IP oice switches set by the Ministry of Posts and Telecommunications, supports the standard SIP protocol and arious audio codecs.
The IPPBX1800 series FXS gateway product specifications are as follows:
| Hardware Specifications | ||||

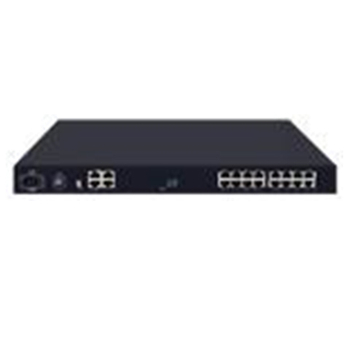

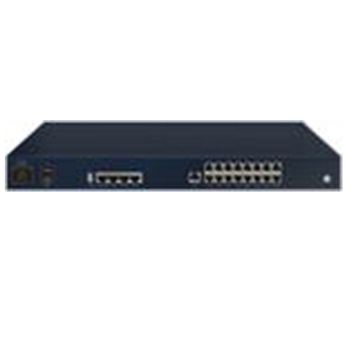

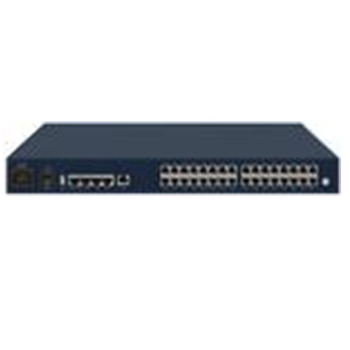

Classification | Product Model | IPPBX1800-S16 | IPPBX1800-S32 | IPPBX1800-S64 |
Equipment Appearance | Case (Length * Width * Height) | 440×210×43.5mm | 440×224.5×44mm | 448x300x44.5mm |
Casing | 1U, metal material | |||
Physical Interface | FXS | 16 | 32 | 64 |
Ethernet Port | 4GE,1WAN+3LAN | 3GE,1WAN+2LAN | ||
USB Interface | one full/High Speed USB interface | |||
Console Interfac | 1个，RJ45,115200bps | |||
Working Environment | Power Consumption | 35W | 45W | 60W |
Working Power Supply | 100VAC~240VAC | 100VAC～240VAC | 100VAC~240VAC | |
Temperature And Humidity | -5°C to 55°C, less than 95% (non-condensing) | |||
Working Air Pressure | 86KPa~106KPa | |||
Reliability | 7×24 hours, success rate greater than 99.999%; MTBF greater than 50,000 hours | |||
| Software Specifications | ||||
Signaling Protocol | NGN SIP, IMS SIP protocols | |||
Encoding Type | Supports G.711a/u, G.729a, G.723 audio codecs, H.263, H.264 video codecs | |||
Call processing | Call-out routing, call-in routing, called number identification, host number identification, number transformation, dialing rules, routing backup | |||
Voice Services | Call-out routing, call-in routing, called number identification, host number identification, number transformation, dialing rules, routing backup | |||
IMS/NGN Call: SIP Trunking with IMS/NGN or Other IPPBX Interworking | ||||
Supplementary Services | Call service: local number inquiry, caller ID display, caller ID display restriction service, unconditional call forwarding, call forwarding when the user is busy, call forwarding when there is no answer, call transfer (blind transfer), call transfer (consultative transfer), call waiting, call hold, three-way calling, abbreviated dialing | |||
Call restriction services: outbound call restriction, blacklist, call time limit, absent user, do not disturb | ||||
Substitute answering service: Group substitute answering, designated substitute answering | ||||
Hotline services: Immediate hotline, Delayed hotline | ||||
Ringing service: Simultaneous ringing service, Sequential ringing service, Alarm service | ||||
Value-added Services | Additional services: voicemail, color ringback tone service, queue, enterprise PBX IVR, one-number service | |||
Billing service: Supporting billing software, capable of realizing postpaid, extension prepaid, and card number prepaid services | ||||
Recording service: With the support of recording software, it achieves call recording query, playback, download, storage, and cleanup | ||||
Crossing Service: Supports NAT traversal, enabling enterprises to register external network extensions across regions, mobile office, and multi-point voice communication functions | ||||
Qos | Dynamic Jitter Buffer, Voice Activity Detection (VAD), Echo Cancellation, Comfort Noise Generation (CNG) | |||
Fax Services | T.30、T.38 | |||
Video Services | SIP-based Point-to-Point Video | |||
Services Statistics | Detailed Call Detail Record (CDR), User Call Statistics, Department Call Statistics, Report Subscription, Call Monitoring | |||
IP Services | DHCP, NAT, NAPT, VLAN, PPPOE, DNS, NTP, Static Routing, SSH, FTP, HTTP/HTTPS | |||
Firewall | Basic firewall functions, black and white list | |||
Account Management | Role-based access control management | |||
Local Management | Web Interface Configuration, Version Upgrade/Rollback, Data Backup and Recovery, License Management | |||
Remote Management | SNMPV2/V3, TR069, OMC Network Management Platform Access | |||
Status Monitoring | Hardware status monitoring, service status | |||
Log Management | Operation logs, runtime logs, user logs, security logs | |||
Alarm Management | Activity alarm, historical alarm query | |||
The IPPBX1800 series FXO gateway product specifications are as follows:
| Hardware Specifications | ||||||

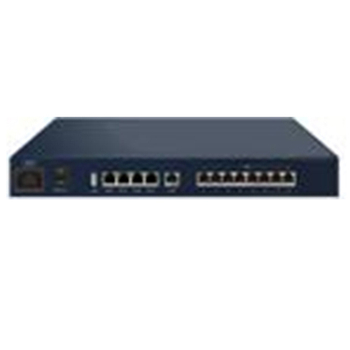

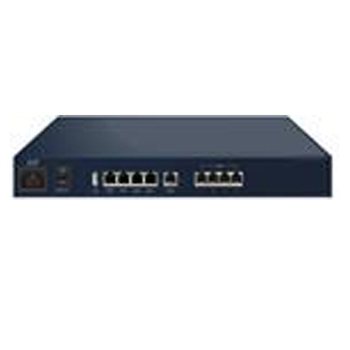

Classification | Product Model | IPPBX1800-O4 | IPPBX1800-O8 | IPPBX1800-S8O4 | IPPBX1800-S12O4 | IPPBX1800-S32O8 |
Equipment Appearance | Case (Length * Width * Height) | 350*180*44mm | 350*180*44mm | 390*180*44 mm | 430*180*44 mm | 440*224.5*44mm |
Casing | 1U, metal material | |||||
Physical Interface | FXS | NA | NA | 8 | 12 | 32 |
FXO | 4 | 8 | 4 | 4 | 8 | |
Ethernet Port | 4GE,1WAN+3LAN | |||||
USB Interface | 1 USB 2.0, supports FullSpeed | |||||
Console Interface | 1，RJ45,115200bps | |||||
Working Environment | Power Consumption | 15W | 15W | 20W | 25W | 45W |
Working Power Supply | AC110V~240V | AC110V~240V | AC110V~240V | AC110V~240V | AC110V~240V | |
Temperature And Humidity | -5°C to 55°C, less than 95% (non-condensing) | |||||
Working Air Pressure | 86KPa~106KPa | |||||
Reliability | 7×24 hours, success rate greater than 99.999%; MTBF greater than 50,000 hours | |||||
| Software Specifications | ||||||
Signaling Protocol | NGN SIP, IMS SIP protocols, FXO analog trunking | |||||
Encoding Type | Supports G.711a/u, G.729a, G.723 audio codecs, H.263, H.264 video codecs | |||||
Call Processing | Call-out routing, call-in routing, called number identification, host number identification, number transformation, dialing rules, routing backup | |||||
Voice Services | Internal extension call: The terminal can be an analog phone, an IP phone, or a SIP softphone | |||||
IMS/NGN Call: SIP Trunking, FXO Analog Trunking Interoperability with IMS/NGN or Other IPPBXs | ||||||
Supplementary Services | Call service: local number inquiry, caller ID display, caller ID display restriction service, unconditional call forwarding, call forwarding when busy, call forwarding when no answer, call transfer (blind transfer), call transfer (consultative transfer), call waiting, call hold, three-way calling, abbreviated dialing | |||||
Call restriction services: outbound call restriction, blacklist, call time limit, absent user, do not disturb | ||||||
Substitute answering service: Group substitute answering, designated substitute answering | ||||||
Hotline services: Immediate hotline, Delayed hotline | ||||||
Ringing service: Simultaneous ringing service, Sequential ringing service, Alarm service | ||||||
Value-added Services | Additional services: voicemail, color ringback tone service, queue, enterprise PBX IVR, one-number service | |||||
Billing service: Supporting billing software, capable of realizing postpaid, extension prepaid, and card number prepaid services | ||||||
Recording service: With the support of recording software, it achieves call recording query, playback, download, storage, and cleanup | ||||||
Call Center: With the accompanying call center software, it realizes call management functions such as holding/holding/transfer/diversion/forced disconnection/voicemail/no disturb wake-up/night service, etc | ||||||
Crossing Service: Supports NAT traversal, enabling enterprise cross-regional external extension registration, mobile office, and multi-point voice communication functions | ||||||
Qos | Dynamic Jitter Buffer, Voice Activity Detection (VAD), Echo Cancellation, Comfort Noise Generation (CNG) | |||||
Fax Services | T.30、T.38 | |||||
Video Services | SIP-based Point-to-Point Video | |||||
Services Statistics | Detailed Call Detail Record (CDR), User Call Statistics, Department Call Statistics, Report Subscription, Call Monitoring | |||||
IP Services | DHCP, NAT, NAPT, VLAN, PPPOE, DNS, NTP, Static Routing, SSH, FTP, HTTP/HTTPS | |||||
Firewall | Basic firewall functions, black and white lists | |||||
Account Management | Role-based access control management | |||||
Local Management | Web Interface Configuration, Version Upgrade/Rollback, Data Backup and Recovery, License Management | |||||
Remote Management | SNMPV2/V3, TR069, OMC Network Management Platform Access | |||||
Status Monitoring | Hardware status monitoring, service status | |||||
Log Management | Operation logs, runtime logs, user logs, security logs | |||||
Alarm Management | Activity alarm, historical alarm query | |||||
The IPPBX1800 series FXS gateway product specifications are as follows:
| Hardware Specifications | ||||
Classification | Product Model | IPPBX1800-S16 | IPPBX1800-S32 | IPPBX1800-S64 |
Equipment Appearance | Case (Length * Width * Height) | 440×210×43.5mm | 440×224.5×44mm | 448x300x44.5mm |
Casing | 1U, metal material | |||
Physical Interface | FXS | 16 | 32 | 64 |
Ethernet Port | 4GE,1WAN+3LAN | 3GE,1WAN+2LAN | ||
USB Interface | one full/High Speed USB interface | |||
Console Interfac | 1个，RJ45,115200bps | |||
Working Environment | Power Consumption | 35W | 45W | 60W |
Working Power Supply | 100VAC~240VAC | 100VAC～240VAC | 100VAC~240VAC | |
Temperature And Humidity | -5°C to 55°C, less than 95% (non-condensing) | |||
Working Air Pressure | 86KPa~106KPa | |||
Reliability | 7×24 hours, success rate greater than 99.999%; MTBF greater than 50,000 hours | |||
| Software Specifications | ||||
Signaling Protocol | NGN SIP, IMS SIP protocols | |||
Encoding Type | Supports G.711a/u, G.729a, G.723 audio codecs, H.263, H.264 video codecs | |||
Call processing | Call-out routing, call-in routing, called number identification, host number identification, number transformation, dialing rules, routing backup | |||
Voice Services | Call-out routing, call-in routing, called number identification, host number identification, number transformation, dialing rules, routing backup | |||
IMS/NGN Call: SIP Trunking with IMS/NGN or Other IPPBX Interworking | ||||
Supplementary Services | Call service: local number inquiry, caller ID display, caller ID display restriction service, unconditional call forwarding, call forwarding when the user is busy, call forwarding when there is no answer, call transfer (blind transfer), call transfer (consultative transfer), call waiting, call hold, three-way calling, abbreviated dialing | |||
Call restriction services: outbound call restriction, blacklist, call time limit, absent user, do not disturb | ||||
Substitute answering service: Group substitute answering, designated substitute answering | ||||
Hotline services: Immediate hotline, Delayed hotline | ||||
Ringing service: Simultaneous ringing service, Sequential ringing service, Alarm service | ||||
Value-added Services | Additional services: voicemail, color ringback tone service, queue, enterprise PBX IVR, one-number service | |||
Billing service: Supporting billing software, capable of realizing postpaid, extension prepaid, and card number prepaid services | ||||
Recording service: With the support of recording software, it achieves call recording query, playback, download, storage, and cleanup | ||||
Crossing Service: Supports NAT traversal, enabling enterprises to register external network extensions across regions, mobile office, and multi-point voice communication functions | ||||
Qos | Dynamic Jitter Buffer, Voice Activity Detection (VAD), Echo Cancellation, Comfort Noise Generation (CNG) | |||
Fax Services | T.30、T.38 | |||
Video Services | SIP-based Point-to-Point Video | |||
Services Statistics | Detailed Call Detail Record (CDR), User Call Statistics, Department Call Statistics, Report Subscription, Call Monitoring | |||
IP Services | DHCP, NAT, NAPT, VLAN, PPPOE, DNS, NTP, Static Routing, SSH, FTP, HTTP/HTTPS | |||
Firewall | Basic firewall functions, black and white list | |||
Account Management | Role-based access control management | |||
Local Management | Web Interface Configuration, Version Upgrade/Rollback, Data Backup and Recovery, License Management | |||
Remote Management | SNMPV2/V3, TR069, OMC Network Management Platform Access | |||
Status Monitoring | Hardware status monitoring, service status | |||
Log Management | Operation logs, runtime logs, user logs, security logs | |||
Alarm Management | Activity alarm, historical alarm query | |||
The IPPBX1800 series FXO gateway product specifications are as follows:
| Hardware Specifications | ||||||
Classification | Product Model | IPPBX1800-O4 | IPPBX1800-O8 | IPPBX1800-S8O4 | IPPBX1800-S12O4 | IPPBX1800-S32O8 |
Equipment Appearance | Case (Length * Width * Height) | 350*180*44mm | 350*180*44mm | 390*180*44 mm | 430*180*44 mm | 440*224.5*44mm |
Casing | 1U, metal material | |||||
Physical Interface | FXS | NA | NA | 8 | 12 | 32 |
FXO | 4 | 8 | 4 | 4 | 8 | |
Ethernet Port | 4GE,1WAN+3LAN | |||||
USB Interface | 1 USB 2.0, supports FullSpeed | |||||
Console Interface | 1，RJ45,115200bps | |||||
Working Environment | Power Consumption | 15W | 15W | 20W | 25W | 45W |
Working Power Supply | AC110V~240V | AC110V~240V | AC110V~240V | AC110V~240V | AC110V~240V | |
Temperature And Humidity | -5°C to 55°C, less than 95% (non-condensing) | |||||
Working Air Pressure | 86KPa~106KPa | |||||
Reliability | 7×24 hours, success rate greater than 99.999%; MTBF greater than 50,000 hours | |||||
| Software Specifications | ||||||
Signaling Protocol | NGN SIP, IMS SIP protocols, FXO analog trunking | |||||
Encoding Type | Supports G.711a/u, G.729a, G.723 audio codecs, H.263, H.264 video codecs | |||||
Call Processing | Call-out routing, call-in routing, called number identification, host number identification, number transformation, dialing rules, routing backup | |||||
Voice Services | Internal extension call: The terminal can be an analog phone, an IP phone, or a SIP softphone | |||||
IMS/NGN Call: SIP Trunking, FXO Analog Trunking Interoperability with IMS/NGN or Other IPPBXs | ||||||
Supplementary Services | Call service: local number inquiry, caller ID display, caller ID display restriction service, unconditional call forwarding, call forwarding when busy, call forwarding when no answer, call transfer (blind transfer), call transfer (consultative transfer), call waiting, call hold, three-way calling, abbreviated dialing | |||||
Call restriction services: outbound call restriction, blacklist, call time limit, absent user, do not disturb | ||||||
Substitute answering service: Group substitute answering, designated substitute answering | ||||||
Hotline services: Immediate hotline, Delayed hotline | ||||||
Ringing service: Simultaneous ringing service, Sequential ringing service, Alarm service | ||||||
Value-added Services | Additional services: voicemail, color ringback tone service, queue, enterprise PBX IVR, one-number service | |||||
Billing service: Supporting billing software, capable of realizing postpaid, extension prepaid, and card number prepaid services | ||||||
Recording service: With the support of recording software, it achieves call recording query, playback, download, storage, and cleanup | ||||||
Call Center: With the accompanying call center software, it realizes call management functions such as holding/holding/transfer/diversion/forced disconnection/voicemail/no disturb wake-up/night service, etc | ||||||
Crossing Service: Supports NAT traversal, enabling enterprise cross-regional external extension registration, mobile office, and multi-point voice communication functions | ||||||
Qos | Dynamic Jitter Buffer, Voice Activity Detection (VAD), Echo Cancellation, Comfort Noise Generation (CNG) | |||||
Fax Services | T.30、T.38 | |||||
Video Services | SIP-based Point-to-Point Video | |||||
Services Statistics | Detailed Call Detail Record (CDR), User Call Statistics, Department Call Statistics, Report Subscription, Call Monitoring | |||||
IP Services | DHCP, NAT, NAPT, VLAN, PPPOE, DNS, NTP, Static Routing, SSH, FTP, HTTP/HTTPS | |||||
Firewall | Basic firewall functions, black and white lists | |||||
Account Management | Role-based access control management | |||||
Local Management | Web Interface Configuration, Version Upgrade/Rollback, Data Backup and Recovery, License Management | |||||
Remote Management | SNMPV2/V3, TR069, OMC Network Management Platform Access | |||||
Status Monitoring | Hardware status monitoring, service status | |||||
Log Management | Operation logs, runtime logs, user logs, security logs | |||||
Alarm Management | Activity alarm, historical alarm query | |||||
