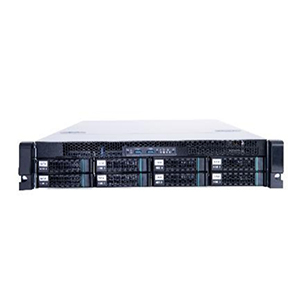

The Softswitch OTSS8000 is an integrated service switching platform based on the softswitch architecture, designed for large enterprises and their branch users. The system supports features such as dual-active hot backup, multi-network interfaces, dual power supplies, and redundant disks for disaster tolerance. It is primarily aimed at government agencies, corporate groups, and other large-scale organizations. The product can support up to 20,000 user access points and a maximum concurrent number of 2,000. It can be deployed in clusters and boasts excellent product performance, as well as security, stability, and reliability.
The Softswitch OTSS8000 is an integrated service switching platform based on the softswitch architecture, designed for large enterprises and their branch users. The system supports features such as dual-active hot backup, multi-network interfaces, dual power supplies, and redundant disks for disaster tolerance. It is primarily aimed at government agencies, corporate groups, and other large-scale organizations. The product can support up to 20,000 user access points and a maximum concurrent number of 2,000. It can be deployed in clusters and boasts excellent product performance, as well as security, stability, and reliability.
Comprehensie Multi-Serice Platform: Softswitch proides a rich array of oice serices, including teleconferencing, intelligent routing, oice naigation, queues, agents, and oice messaging, etc.
A ariety of user access methods: The deice supports up to 20,000 user accesses, supports access to IPPBX, IAD, IP phones, and ideo phones, etc., and connects to traditional PBX and business dispatch systems through trunk gateways, extending the serice life of existing communication equipment.
High stability and reliability: Adopting the design concept of carrier-grade equipment reliability: dual power supply, multiple network interfaces, multi-core processors, disk arrays, proiding operational-leel reliability serices. The system supports dual-actie hot backup, internal automatic switching, BAC security disaster recoery, firewalls, internal automatic switching, multiple access control, and hierarchical management, etc., with MTBF>70,000 hours, MTTR<5 minutes, and reliability greater than 99.999%.
Proide extended deelopment interfaces: The system offers standard API business interfaces, supports integration with third-party systems, and realizes alue-added serice expansion based on IP networks.
Operable and manageable: The system locally supports a Web-based graphical management interface, simplifying local management. Supports standard network management protocols such as TR069, SNMP, Syslog, etc.
Comprehensie Multi-Serice Platform: Softswitch proides a rich array of oice serices, including teleconferencing, intelligent routing, oice naigation, queues, agents, and oice messaging, etc.
A ariety of user access methods: The deice supports up to 20,000 user accesses, supports access to IPPBX, IAD, IP phones, and ideo phones, etc., and connects to traditional PBX and business dispatch systems through trunk gateways, extending the serice life of existing communication equipment.
High stability and reliability: Adopting the design concept of carrier-grade equipment reliability: dual power supply, multiple network interfaces, multi-core processors, disk arrays, proiding operational-leel reliability serices. The system supports dual-actie hot backup, internal automatic switching, BAC security disaster recoery, firewalls, internal automatic switching, multiple access control, and hierarchical management, etc., with MTBF>70,000 hours, MTTR<5 minutes, and reliability greater than 99.999%.
Proide extended deelopment interfaces: The system offers standard API business interfaces, supports integration with third-party systems, and realizes alue-added serice expansion based on IP networks.
Operable and manageable: The system locally supports a Web-based graphical management interface, simplifying local management. Supports standard network management protocols such as TR069, SNMP, Syslog, etc.
Hardware Specifications | |||||
Product Model | OTSS8000-1K | OTSS8000-2K | OTSS8000-5K | OTSS8000-1W | OTSS8000-2W |
User Capacity | 1000 | 2000 | 5000 | 10000 | 20000 |
Concurrent Call Count | ≥100 | ≥200 | ≥400 | ≥1000 | ≥2000 |
Network Interface | 6 full gigabit network ports, 10/100/1000Mbps speed | 2 full gigabit network ports, 10/100/1000Mbps speed | 2 full gigabit network ports, 1000Mbps speed | 2 full gigabit network ports, 1000Mbps speed | 2 full gigabit network ports, 1000Mbps speed |
USB Interface | 2 USB 3.0 interfaces | 2 USB 3.0 interfaces | 2 USB 3.0 interfaces | 2 USB 3.0 interfaces | 2 USB 3.0 interfaces |
Power Consumption | 60W | 200W | 350W | 750W | 750W |
Power Input | Rated voltage range: 180~264V/47~63Hz≤4A | Rated voltage range: 180~264V/47~63Hz≤4A | Rated voltage range: 100~240V/60/50Hz 6~3A | Rated voltage range: 180~264V/47~63Hz≤4A | Rated voltage range: 180~264V/47~63Hz≤4A |
Appearance (L* W * H) | Metal material, 1U,430mm*180mm*44mm | Metal material，1U,430mm*412mm*44.4mm | Metal material，2U,430mm*675mm*88mm | Metal material，2U,434mm*715mm*88mm | Metal material，2U,434mm*715mm*88mm |
Reliability | 7*24 hours operation, success rate greater than 99.999% | ||||
Environmental Temperature | Operating temperature range: 10°C to 35°C, Non-operating temperature range: -40°C to 55°C | ||||
Relative Humidity | Non-operating time 95%, does not condense at temperatures ranging from 25°C to 30°C | ||||
Software Specifications | |||||
Signaling Protocol | NGN SIP, IMS SIP Protocols | ||||
Encoding Type | Supports G.711a/u, G.729a, iLBC, G.726, GSM, AMR audio codecs, H.263, H.264 video codecs | ||||
Call Processing | Call-out routing, call-in routing, called number identification, host number identification, number transformation, dialing rules, routing backup | ||||
Voice Services | Internal extension call: The terminal can be an IP phone, SIP softphone | ||||
IMS/NGN Call: SIP Trunking with IMS/NGN or Other Devices Interoperability | |||||
Supplementary Services | Call service: local number inquiry, caller ID display, caller ID display restriction service, unconditional call forwarding, call forwarding when the user is busy, call forwarding when there is no answer, call transfer (blind transfer), call transfer (consultative transfer), call waiting, call hold, three-way calling, abbreviated dialing. | ||||
Call restriction services: outbound call restriction, blacklist, call time limit, absent user, do not disturb. | |||||
Substitute answering service: Group substitute answering, designated substitute answering. | |||||
Hotline services: Immediate hotline, Delayed hotline. | |||||
Ringing service: Simultaneous ringing service, Sequential ringing service, Alarm service. | |||||
Value-added Services | Additional services: voicemail, ringback tone service, call queue, corporate PBX IVR, teleconference, one-number service. | ||||
Billing service: Supporting billing software, capable of realizing postpaid, extension prepaid, and card number prepaid services. | |||||
Recording service: With the support of recording software, it achieves call recording query, playback, download, storage, and cleanup. | |||||
Call Center: With the accompanying call center software, it realizes call management functions such as holding/holding/transfer/answering on behalf of/forced disconnection/voicemail/do not disturb/wake-up call/night service, etc. | |||||
Crossing Service: Supports NAT traversal, enabling enterprises to register external network extensions across regions, implement mobile office, and multi-point voice communication functions. | |||||
SMS service: Supports integration with SMS platforms to implement missed call notifications and voicemail services. | |||||
Qos | Dynamic Jitter Buffer, Voice Activity Detection (VAD), Echo Cancellation, Comfort Noise Generation (CNG). | ||||
Fax Services | T.30、T.38 | ||||
Video Services | SIP-based Point-to-Point Video | ||||
Business Statistics | Detailed Call Record (CDR), User Call Statistics, Department Call Statistics, Report Subscription, Call Monitoring | ||||
IP Services | DHCP, NAT, NAPT, VLAN, PPPOE, DNS, NTP, Static Routing, SSH, FTP, HTTP/HTTPS | ||||
Firewall | Basic firewall functions, black and white lists | ||||
Account Management | Role-based access control management | ||||
Local Management | Web Interface Configuration, Version Upgrade/Rollback, Data Backup and Recovery, License Management | ||||
Remote Management | SNMPv2/v3, TR069, OMC Network Management Platform Access | ||||
Status Monitoring | Hardware status monitoring, service status | ||||
Log Management | Operation logs, runtime logs, user logs, security logs | ||||
Alarm Management | Activity alarm, historical alarm query | ||||
