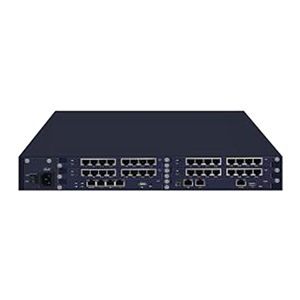

IPPBX2800H-128 from Singapore manufacturer

The IPPBX2800H is a converged network communication platform designed for enterprise and branch users. The product integrates convergent communication technology, data network technology, and firewall technology into a single unit. The device adopts a modular design concept and supports hot-swappable boards.

The system supports robust firewall protection, multiple access control, multi-level permission management, and anti-tampering measures as part of its security management features. The product offers QoS voice quality assurance and internal automatic switching functions. It supports analog trunks, digital trunks, and IP trunks for connecting to carrier networks, effectively simplifying the corporate voice network structure, reducing deployment complexity, and operational and maintenance costs.

Modular Design: Flexible configuration of E1/T1, FXS, and FXO interface modules according to requirements, facilitating flexible deployment for users.
Card insertion design: Utilizes a B/S architecture, modular metal chassis, supports hot-swappable boards.
Integrated Broadband and Narrowband Access: It can be accessed to IMS ia IP Trunking, and it can also be accessed to PSTN ia digital/analog trunking methods.
Flexible Networking and Security: Supports distributed and centralized networking, supports IP4/IP6, complies with corporate IP networking security and data security requirements.
Internal self-switching: Supports self-switching functionality, allowing normal communication between extensions within the same deice when external lines are interrupted.
Rapid Deployment: Graphical WEB Management Interface, Simple and Easy to Operate, Supports Local and Remote Network Management.
NAT Traersal: Supports NAT Traersal, enabling cross-regional external extension registration, mobile office, and multi-point oice communication functions for enterprises.
Anti-tampering mechanism: Supports ACL access control, ARP attack preention, DDoS protection, and anti-malicious registration measures.
Good compatibility: The deice meets the technical requirements for postal and telecommunications departments and public IP oice switches, supports the standard SIP protocol and arious audio codecs.

Hardware Specifications
Product Model			IPPBX2800H-128	IPPBX2800H-256
User Capacity			The host supports a maximum of 128 analog channels, and SIP plus analog can support up to 400 users	The host supports a maximum of 256 analog channels, and SIP plus analog can support up to 400 users
Maximum Concurrent Call Count			32/128(Optional)	32/128(Optional)
Slots			2 mandatory slots, 4 optional slots	2 mandatory slots, 8 optional slots
Mandatory Slot	SSW Board		System Switch Board, Slot 1 1 WAN, 2 LAN, RJ45 interface, speed 10/100/1000Mbps 1 console interface, RJ45, 115200bps; 1 USB 2.0 interface
Mandatory Slot 2 choose 1	MEXP Board		2 network maintenance ports, RJ45 1 USB 2.0 interface
	MEXP-4E1 Board		2 maintenance network ports, RJ45 4 E1/T1 interfaces, RJ45, 120 ohms 1 USB 2.0 interface 4 E1 interfaces, RJ45
Optional Slot	FXS Board		Simulated User Board, 32FXS, 8 RJ45 ports
	FXO Board		Simulated relay board, 32FXO, 8 RJ45 ports
Power Supply			100VAC～240VAC,50/60Hz
Case			<1.5U,made of metal material	<2.5U,made of metal material
Maximum Power			200W	250W
Dimensions (Width x Depth x Height)			443x356x64mm	443x356x108mm
Working Environment			Working environment temperature -5℃~55℃, relative humidity of the environment ≤95% (non-condensing)
Software Specifications
Signaling Protocol		NGN SIP, IMS SIP protocols, FXO analog trunks, E1/T1 digital trunks SS7, PRI, R2 signaling
Encoding Type		Supports G.711a/u, G.729a, G.723 audio codecs, H.263, H.264 video codecs
Call Processing		Call-out routing, call-in routing, called number identification, host number identification, number transformation, dialing rules, routing backup
Voice Services		Internal extension call: The terminal can be an analog phone, an IP phone, or a SIP softphone
		PSTN Call: PRI, R2, SS7 Trunks Interworking with PSTN or Traditional PBX
		IMS/NGN Call: SIP Trunking with IMS/NGN or Other IPPBX Interconnection
Supplementary Services		Call service: local number inquiry, caller ID display, caller ID display restriction service, unconditional call forwarding, call forwarding when busy, call forwarding when no answer, call transfer (blind transfer), call transfer (consultative transfer), call waiting, call hold, three-way calling, abbreviated dialing
		Call restriction services: outbound call restriction, blacklist, call time limit, absent user, do not disturb.
		Substitute answering service: Group substitute answering, designated substitute answering
		Hotline services: Immediate hotline, Delayed hotline
		Ringing service: Simultaneous ringing service, Sequential ringing service, Alarm service
Value-added Services		Additional services: voicemail, ringback tone service, queue, enterprise PBX IVR, teleconference, one-number service
		Billing service: Supporting billing software, capable of realizing postpaid, extension prepaid, and card number prepaid services
		Recording service: With the support of recording software, it achieves call recording query, playback, download, storage, and cleanup
		Call Center: With the accompanying call center software, it realizes call management functions such as holding/holding/transfer/diversion/forced disconnection/voicemail/do not disturb/wake-up service/night service, etc
		Crossing Service: Supports NAT traversal, enabling enterprise cross-regional external network extension registration, mobile office, and multi-point voice communication functions
		SMS service: Supports integration with SMS platforms to implement missed call notifications and voicemail services
Qos		Dynamic Jitter Buffer, Voice Activity Detection (VAD), Echo Cancellation, Comfort Noise Generation (CNG)
Fax Services		T.30、T.38
Video Services		SIP-based Point-to-Point Video
Services Statistics		Detailed Call Detail Record (CDR), User Call Statistics, Department Call Statistics, Report Subscription, Call Monitoring
IP Services		DHCP, NAT, NAPT, VLAN, PPPOE, DNS, NTP, Static Routing, SSH, FTP, HTTP/HTTPS
Firewall		Basic firewall functions, black and white lists
Account Management		Role-based access control management
Local Management		Web Interface Configuration, Version Upgrade/Rollback, Data Backup and Recovery, License Management
Remote Management		SNMPV2/V3, TR069, OMC Network Management Platform Access
Status Monitoring		Hardware status monitoring, service status
Log Management		Operation logs, runtime logs, user logs, security logs
Alarm Management		Activity alarm, historical alarm query
